Please send RFQ , we will respond immediately.

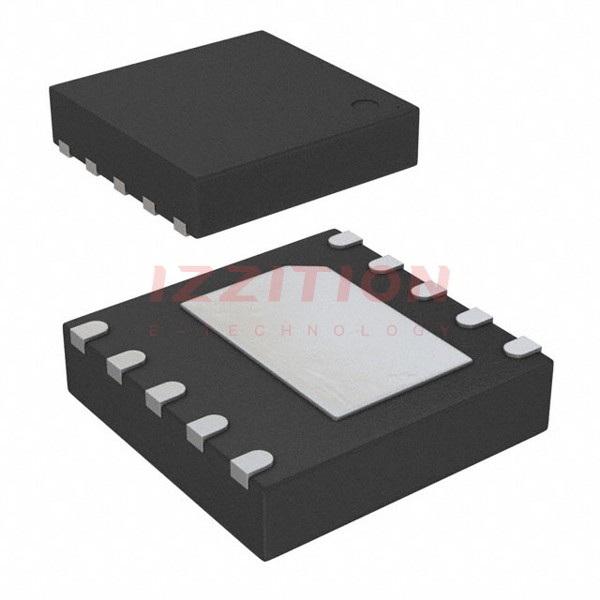

| Part Number | NCP5109AMNTWG | NCP5109BMNTWG | NCP5106AMNTWG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Driven Configuration | - | Half-Bridge | Half-Bridge |
| Channel Type | - | Independent | Independent |
| Number of Drivers | - | 2 | 2 |
| Gate Type | - | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | - | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | - | 0.8V, 2.3V | 0.8V, 2.3V |
| Current - Peak Output (Source, Sink) | - | 250mA, 500mA | 250mA, 500mA |
| Input Type | - | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | 200 V | 600 V |
| Rise / Fall Time (Typ) | - | 85ns, 35ns | 85ns, 35ns |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount |
| Package / Case | - | 10-VFDFN Exposed Pad | 10-VDFN Exposed Pad |
| Supplier Device Package | - | 10-DFN (3x3) | 10-DFN (4x4) |
