Please send RFQ , we will respond immediately.

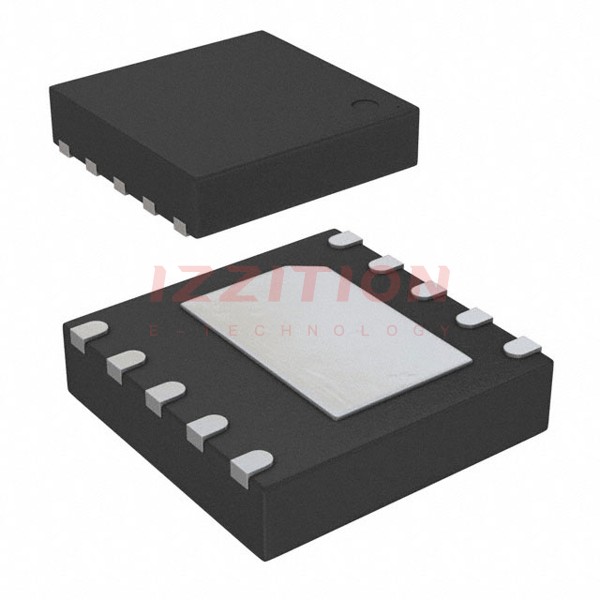

| Part Number | NCP5106AMNTWG | NCP5106BMNTWG | NCP5109AMNTWG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | - |
| Channel Type | Independent | Independent | - |
| Number of Drivers | 2 | 2 | - |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET | - |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V | - |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V | 0.8V, 2.3V | - |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | 250mA, 500mA | - |
| Input Type | Non-Inverting | Non-Inverting | - |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V | - |
| Rise / Fall Time (Typ) | 85ns, 35ns | 85ns, 35ns | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | - |
| Package / Case | 10-VDFN Exposed Pad | 10-VDFN Exposed Pad | - |
| Supplier Device Package | 10-DFN (4x4) | 10-DFN (4x4) | - |
