| Part Number | NCP4687DH15T1G | NCP4687DH18T1G | NCP4687DH25T1G | NCP4687DH12T1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.25V | 5.25V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 2.5V | 1.2V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.48V @ 500mA | 0.41V @ 500mA | 0.34V @ 500mA | 0.53V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 115 µA | 115 µA | 115 µA | 115 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 75dB ~ 70dB (1kHz ~ 10kHz) | 75dB ~ 70dB (1kHz ~ 10kHz) | 75dB ~ 70dB (1kHz ~ 10kHz) | 75dB ~ 70dB (1kHz ~ 10kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

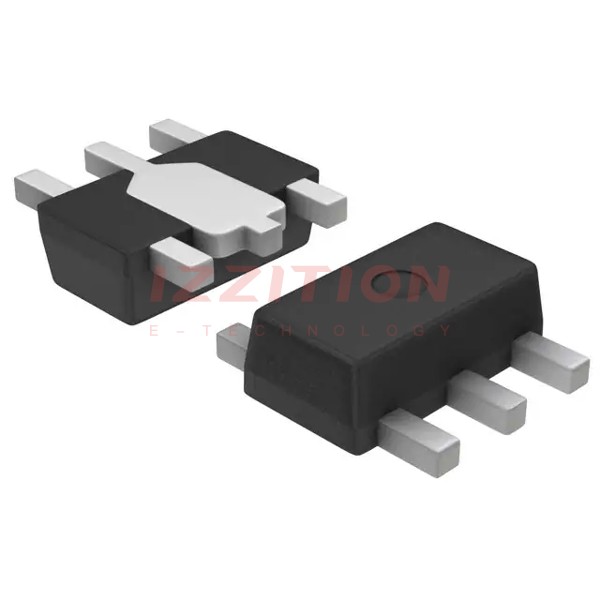

| Package / Case | SOT-89-5/6 | SOT-89-5/6 | SOT-89-5/6 | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 | SOT-89-5 | SOT-89-5 | SOT-89-5 |
