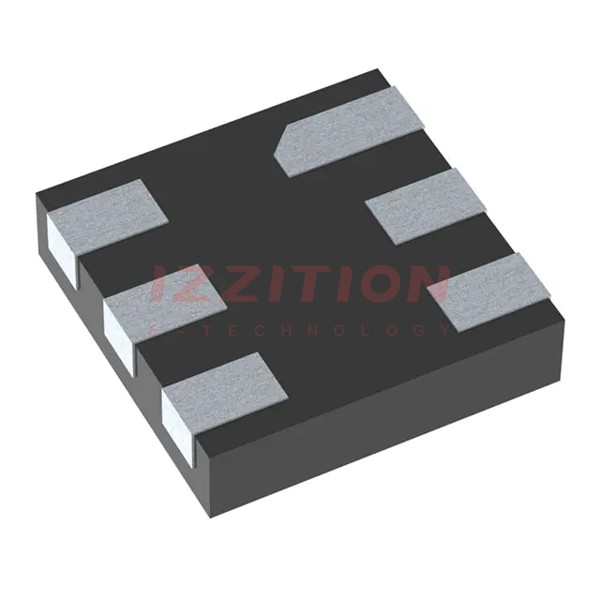

| Part Number | NCP4671DMX12TCG | NCP4671DMX13TCG | NCP4671DMX15TCG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.25V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.3V | 1.5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.28V @ 400mA | 0.26V @ 400mA | 0.26V @ 400mA |
| Current - Output | 400mA | 400mA | 400mA |
| Current - Quiescent (Iq) | 40 µA | 40 µA | 40 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 80dB ~ 50dB (1kHz) | 80dB ~ 50dB (1kHz) | 80dB ~ 50dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Under Voltage Lockout (UVLO) | Over Current, Under Voltage Lockout (UVLO) | Over Current, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN | 6-XFDFN | 6-XFDFN |
| Supplier Device Package | 6-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) |
