Please send RFQ , we will respond immediately.
| Part Number | NCP4626HMX050TCG | NCP4623HMX050TCG | NCP4626DMX050TCG | NCP4626HMX030TCG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 16V | 24V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 3V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.75V @ 300mA | 0.4V @ 20mA | 0.75V @ 300mA | 1.5V @ 300mA |
| Current - Output | 300mA | 150mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 100 µA | 10 µA | 100 µA | 100 µA |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 60dB (1kHz) | 35dB (1kHz) | 60dB (1kHz) | 70dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

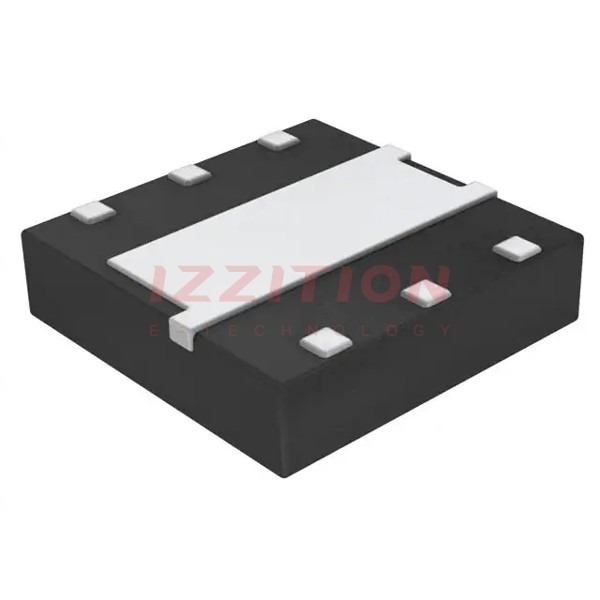

| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-XDFN (1.6x1.6) | 6-XDFN (1.6x1.6) | 6-XDFN (1.6x1.6) | 6-XDFN (1.6x1.6) |
