Please send RFQ , we will respond immediately.

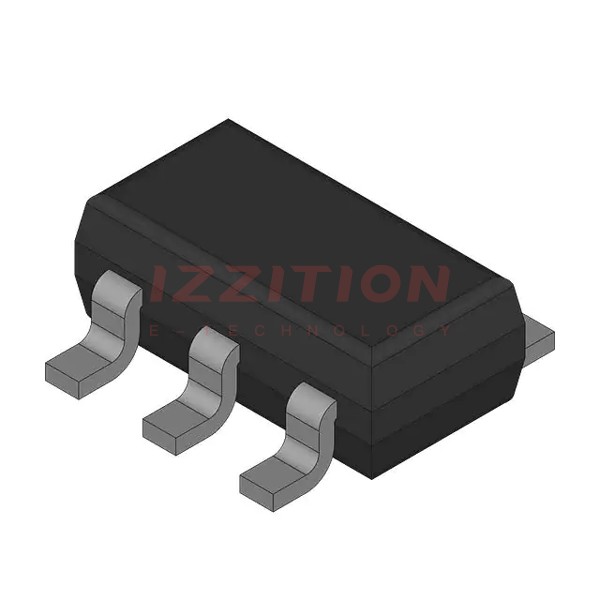

| Part Number | NCP4620DSN50T1G | NCP4620HSN50T1G | NCP4625DSN50T1G | NCP4624DSN50T1G | NCP4620DSN30T1G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | - | Positive | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 10V | 10V | 11V | 10V |
| Voltage - Output (Min/Fixed) | - | 5V | 5V | 5V | 3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.4V @ 150mA | 0.75V @ 300mA | 0.76V @ 150mA | 0.48V @ 150mA |
| Current - Output | - | 150mA | 300mA | 150mA | 150mA |
| Current - Quiescent (Iq) | - | 40 µA | 40 µA | 3.7 µA | 40 µA |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | - | 70dB (1kHz) | 70dB (1kHz) | 15dB (1kHz) | 70dB (1kHz) |
| Control Features | - | Enable | Enable | Enable | Enable |
| Protection Features | - | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Reverse Polarity | Over Current, Over Temperature |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | - | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 |
