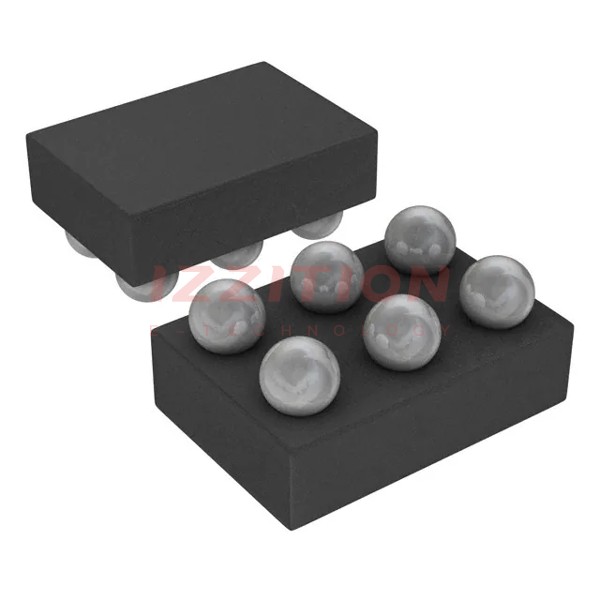

| Part Number | NCP457FCT2G | NCP459FCT2G | NCP437FCT2G | NCP451FCT2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | P-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 0.75V ~ 5.5V | 0.75V ~ 5.5V | 1V ~ 3.6V | 0.75V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2A | 4.5A | 3A | 3A |
| Rds On (Typ) | 24mOhm | 11mOhm | 15mOhm | 12mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Load Discharge | Load Discharge | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-WLCSP (1.25x0.85) | 8-WLCSP (2x1) | 6-WLCSP (1.0x1.5) | 6-WLCSP (1.4x0.9) |
| Package / Case | 6-UFBGA, WLCSP | 8-WFBGA, WLCSP | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP |
