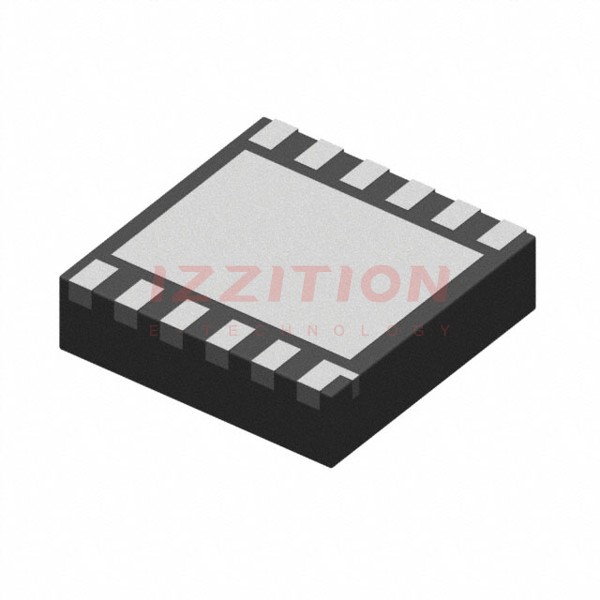

| Part Number | NCP45540IMNTWG-H | NCP45541IMNTWG-H | NCP45560IMNTWG-H | NCP45540IMNTWG-L | NCP45520IMNTWG-H |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 0.5V ~ 13.5V | 0.5V ~ 13.5V | 0.5V ~ 13.5V | 0.5V ~ 13.5V | 0.5V ~ 13.5V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 20A | 20A | 17A | 20A | 10.5A |
| Rds On (Typ) | 4.8mOhm | 4.8mOhm | 3.2mOhm | 4.8mOhm | 12.8mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Power Good, Slew Rate Controlled | Power Good, Slew Rate Controlled | Power Good, Slew Rate Controlled | Power Good, Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Over Temperature, UVLO | - | Over Temperature, UVLO | Over Temperature, UVLO | Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 12-DFN (3x3) | 12-DFN (3x3) | 12-DFN (3x3) | 12-DFN (3x3) | 8-DFN (2x2) |
| Package / Case | 12-VFDFN Exposed Pad | 12-VFDFN Exposed Pad | 12-VFDFN Exposed Pad | 12-VFDFN Exposed Pad | 8-VFDFN Exposed Pad |
