Please send RFQ , we will respond immediately.
| Part Number | NCP337FCT2G | NCP437FCT2G | NCP333FCT2G | NCP334FCT2G | NCP335FCT2G | NCP336FCT2G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Obsolete | Active | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | - |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | - |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | - |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | - |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | - |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | - |
| Voltage - Load | 1.2V ~ 5.5V | 1V ~ 3.6V | 1.2V ~ 5.5V | 1.2V ~ 5.5V | 1.2V ~ 5.5V | - |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | - |
| Current - Output (Max) | 3A | 3A | 1.5A | 2A | 2A | - |
| Rds On (Typ) | 20Ohm | 15mOhm | 45mOhm | 38Ohm | 38Ohm | - |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | - |
| Features | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | - |
| Fault Protection | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |

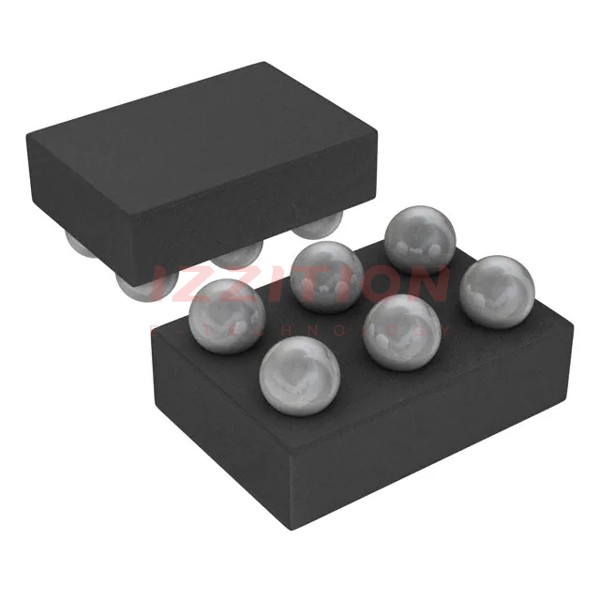

| Supplier Device Package | 6-WLCSP (1.0x1.5) | 6-WLCSP (1.0x1.5) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.96x0.96) | - |
| Package / Case | 6-UFBGA, WLCSP | 6-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | - |
