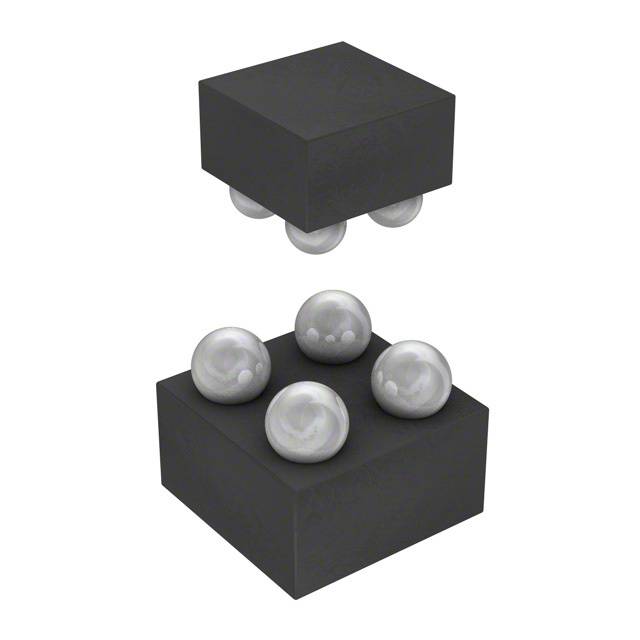

| Part Number | NCP334FCT2G | NCP335FCT2G | NCP337FCT2G | NCP434FCT2G | NCP336FCT2G | NCP333FCT2G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | - | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | - | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | - | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | - | High Side |
| Output Type | P-Channel | P-Channel | P-Channel | P-Channel | - | P-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | - | On/Off |
| Voltage - Load | 1.2V ~ 5.5V | 1.2V ~ 5.5V | 1.2V ~ 5.5V | 1V ~ 3.6V | - | 1.2V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | - | Not Required |
| Current - Output (Max) | 2A | 2A | 3A | 2A | - | 1.5A |
| Rds On (Typ) | 38Ohm | 38Ohm | 20Ohm | 65mOhm | - | 45mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | - | Non-Inverting |
| Features | Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Slew Rate Controlled | - | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | - | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.96x0.96) | 6-WLCSP (1.0x1.5) | 4-WLCSP (0.96x0.96) | - | 4-WLCSP (0.76x0.76) |
| Package / Case | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 6-UFBGA, WLCSP | 4-UFBGA, WLCSP | - | 4-UFBGA, WLCSP |
