Please send RFQ , we will respond immediately.

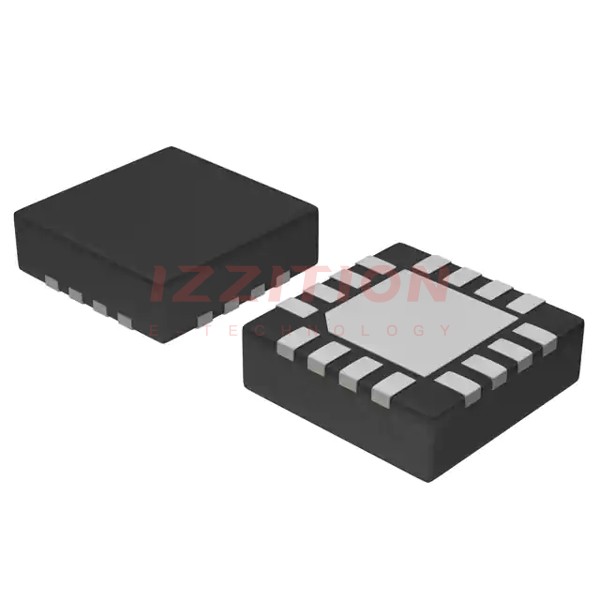

| Part Number | NCP3136MNTXG | NCP3134MNTXG | NCP3135MNTXG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.9V | 2.9V | 2.9V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 6.5V | 4.62V | 4.62V |
| Current - Output | 6A | 4A | 5A |
| Frequency - Switching | 1.1MHz | 2.2MHz | - |
| Synchronous Rectifier | No | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
