| Part Number | NCP3102BMNTXG | NCP3102MNTXG | NCP3102CMNTXG | NCP3101BMNTXG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 13.2V | 13.2V | 13.2V | 13.2V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 10.56V | 10.56V | 11.22V | 11.68V |
| Current - Output | 10A | 10A | 10A | 6A |
| Frequency - Switching | 275kHz | 275kHz | 275kHz | 275kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

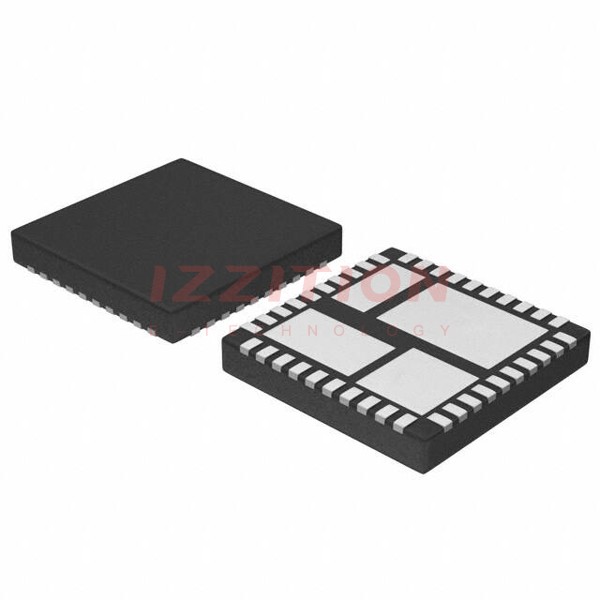

| Package / Case | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) |
