Please send RFQ , we will respond immediately.

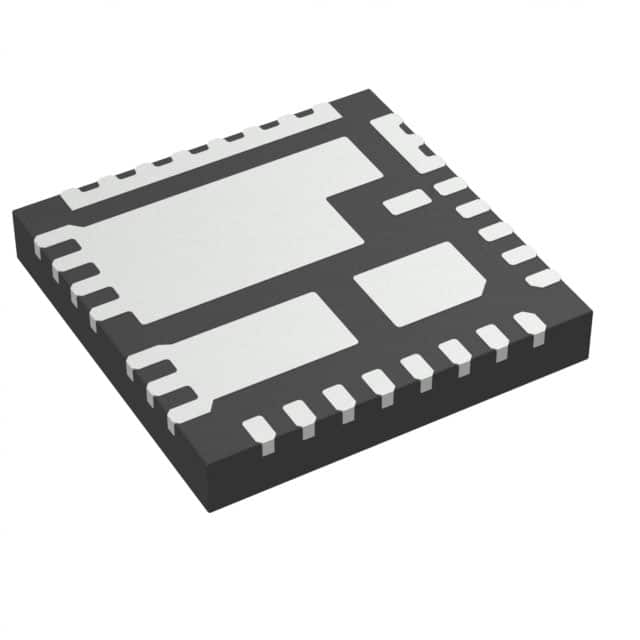

| Part Number | NCP302150MNTWG | NCP302155MNTWG | NCP303150MNTWG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Driven Configuration | High-Side or Low-Side | High-Side or Low-Side | Half-Bridge, Low-Side |
| Channel Type | Single | Single | Single |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.7V, 2.65V | 0.7V, 2.65V | 0.65V, 2.7V |
| Current - Peak Output (Source, Sink) | 2A, 2.5A | 2A, 2.5A | 100mA, 100mA |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V | 35 V | 30 V |
| Rise / Fall Time (Typ) | 12ns, 6ns | 12ns, 6ns | 17ns, 26ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 31-PowerWFQFN | 31-PowerWFQFN | 39-PowerVFQFN |
| Supplier Device Package | 31-PQFN (5x5) | 31-PQFN (5x5) | 39-PQFN (5x6) |
