| Part Number | NCP177BMX120TCG | NCP177BMX150TCG | NCP177BMX180TCG | NCP177BMX125TCG | NCP170BMX120TCG | NCP176BMX120TCG | NCP177AMX120TCG | NCP177BMX100TCG | NCP177BMX110TCG |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.5V | 1.8V | 1.25V | 1.2V | 1.2V | 1.2V | 1V | 1.1V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.38V @ 500mA | 0.285V @ 500mA | - | - | - | - | - | - |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 150mA | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 90 µA | 90 µA | 90 µA | 90 µA | 900 nA | 90 µA | 90 µA | 90 µA | 90 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - |
| PSRR | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 63dB ~ 57dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

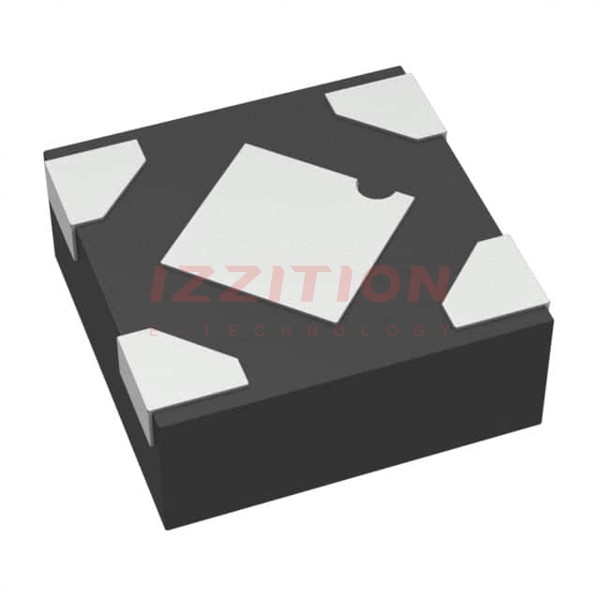

| Package / Case | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 6-XFDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) | 6-XDFN (1.2x1.2) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) |
