Please send RFQ , we will respond immediately.

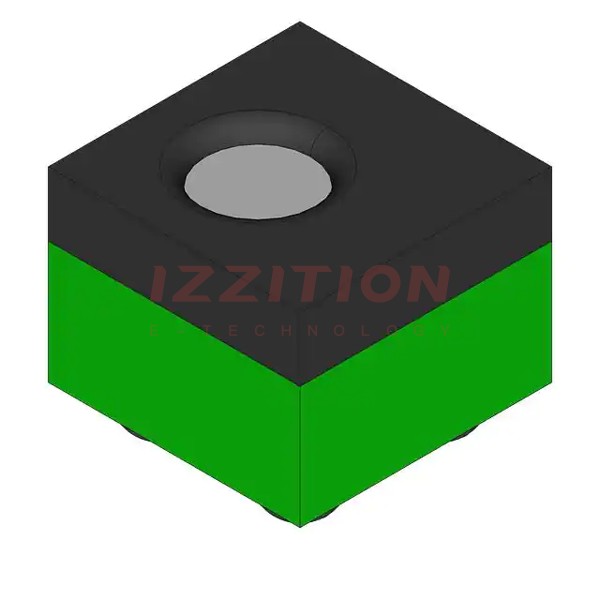

| Part Number | NCP160BFCT350T2G | NCP160BFCT450T2G | NCP161BFCT350T2G | NCP160AFCT350T2G | NCP160BFCS350T2G | NCP160BFCT250T2G | NCP160BFCT300T2G | NCP160BFCT330T2G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active | Active | Obsolete |
| Output Configuration | - | - | Positive | Positive | - | Positive | Positive | Positive |
| Output Type | - | - | Fixed | Fixed | - | Fixed | Fixed | Fixed |
| Number of Regulators | - | - | 1 | 1 | - | 1 | 1 | 1 |
| Voltage - Input (Max) | - | - | 5.5V | 5.5V | - | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | - | 3.5V | 3.5V | - | 2.5V | 3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | 0.255V @ 450mA | 0.14V @ 250mA | - | 0.175V @ 250mA | 0.155V @ 250mA | 0.145V @ 250mA |
| Current - Output | - | - | 450mA | 250mA | - | 250mA | 250mA | 250mA |
| Current - Quiescent (Iq) | - | - | 23 µA | 23 µA | - | 23 µA | 23 µA | 23 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - |
| PSRR | - | - | 91dB ~ 48dB (100Hz ~ 100kHz) | 91dB ~ 48dB (100Hz ~ 100kHz) | - | 91dB ~ 48dB (100Hz ~ 100kHz) | 91dB ~ 48dB (100Hz ~ 100kHz) | 91dB ~ 48dB (100Hz ~ 100kHz) |
| Control Features | - | - | Enable | Enable | - | Enable | Enable | Enable |
| Protection Features | - | - | Over Current, Over Temperature, Soft Start | Over Current, Over Temperature, Soft Start | - | Over Current, Over Temperature, Soft Start | Over Current, Over Temperature, Soft Start | Over Current, Over Temperature, Soft Start |
| Operating Temperature | - | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | - | - | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | - | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | - | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP |
| Supplier Device Package | - | - | 4-WLCSP (0.64x0.64) | 4-WLCSP (0.64x0.64) | - | 4-WLCSP (0.64x0.64) | 4-WLCSP (0.64x0.64) | 4-WLCSP (0.64x0.64) |
