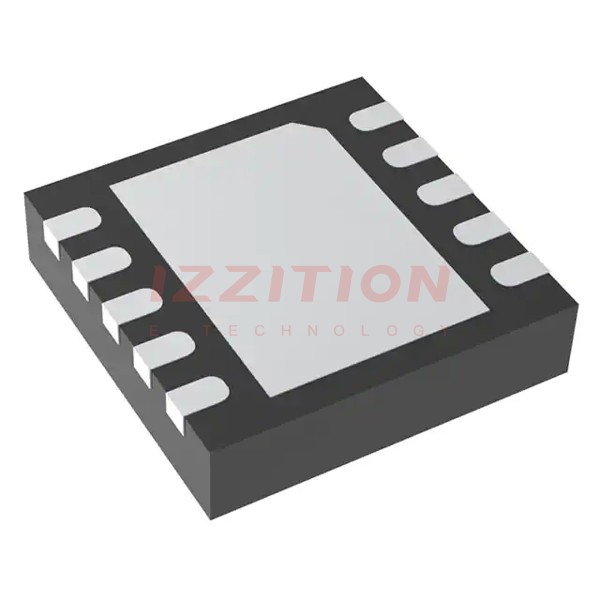

NCP1589AMNTWG
  • Share:

onsemi NCP1589AMNTWG

Manufacturer No:
NCP1589AMNTWG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
NCP1589AMNTWG Datasheet
ECAD Model:
-
Description:
IC REG CTRLR BUCK 10DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):4.5V ~ 13.2V
Frequency - Switching:300kHz
Duty Cycle (Max):75%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Enable, Power Good
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:10-VFDFN Exposed Pad
Supplier Device Package:10-DFN (3x3)
0 Remaining View Similar

In Stock

$0.93
692

Please send RFQ , we will respond immediately.

Similar Products

Part Number NCP1589AMNTWG NCP1589AMNTXG   NCP1589LMNTWG   NCP1589DMNTWG   NCP1589CMNTWG   NCP1589MNTWG   NCP1589BMNTWG
Manufacturer onsemi onsemi onsemi onsemi onsemi onsemi onsemi
Product Status Active Active Active Active Active Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive Positive Positive Positive Positive
Topology Buck Buck Buck Buck Buck Buck Buck
Number of Outputs 1 1 1 1 1 1 1
Output Phases 1 1 1 1 1 1 1
Voltage - Supply (Vcc/Vdd) 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V 4.5V ~ 13.2V
Frequency - Switching 300kHz 300kHz - - 300kHz 300kHz 600kHz
Duty Cycle (Max) 75% 75% 83% 83% 75% 75% 75%
Synchronous Rectifier Yes Yes Yes Yes Yes Yes Yes
Clock Sync No No No No No No No
Serial Interfaces - - - - - - -
Control Features Enable, Power Good Enable, Power Good Enable, Power Good Enable, Power Good Enable, Power Good Enable, Power Good Enable, Power Good
Operating Temperature 0°C ~ 70°C (TA) 0°C ~ 70°C (TA) 0°C ~ 95°C (TA) 0°C ~ 95°C (TA) -20°C ~ 70°C (TA) -40°C ~ 85°C (TA) 0°C ~ 70°C (TA)
Mounting Type Surface Mount, Wettable Flank Surface Mount Surface Mount Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank
Package / Case 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad 10-VFDFN Exposed Pad
Supplier Device Package 10-DFN (3x3) 10-DFN (3x3) 10-DFN (3x3) 10-DFN (3x3) 10-DFN (3x3) 10-DFN (3x3) 10-DFN (3x3)
