| Part Number | NCP156ABFCT100280T2G | NCP156ABFCT110280T2G | NCP156ABFCT120280T2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1V, 2.8V | 1.1V, 2.8V | 1.2V, 2.8V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.15V @ 500mA, 0.16V @ 250mA | 0.15V @ 500mA, 0.16V @ 250mA | 0.15V @ 500mA, 0.16V @ 250mA |
| Current - Output | 500mA, 250mA | 500mA, 250mA | 500mA, 250mA |
| Current - Quiescent (Iq) | - | - | - |
| Current - Supply (Max) | - | - | - |
| PSRR | 70dB (1kHz), 92dB (1kHz) | 70dB (1kHz), 92dB (1kHz) | 70dB (1kHz), 92dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

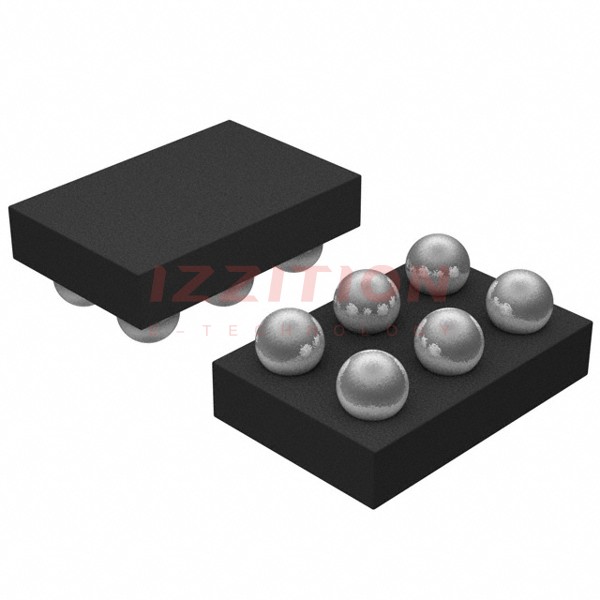

| Package / Case | 6-XFBGA, WLCSP | 6-XFBGA, WLCSP | 6-XFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.2x0.8) | 6-WLCSP (1.2x0.8) | 6-WLCSP (1.2x0.8) |
