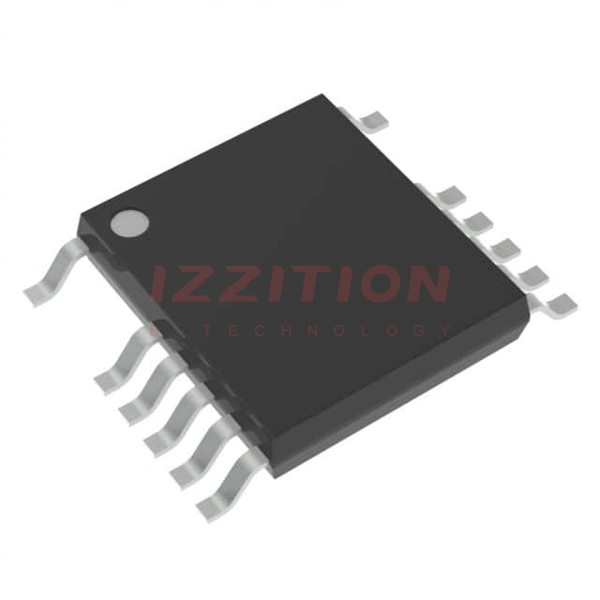

| Part Number | NCP1568G00DBR2G | NCP1568G04DBR2G | NCP1568G03DBR2G | NCP1568G01DBR2G | NCP1568S00DBR2G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Active | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | - | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 15.2 V | 15.2 V | 15.2 V | 15.2 V | 15.2 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V | 10V ~ 27V | 10V ~ 27V | 10V ~ 27V | 10V ~ 27V |
| Duty Cycle | 79% | 79% | 79% | 79% | 79% |
| Frequency - Switching | 100kHz ~ 1MHz | 100kHz ~ 1MHz | 100kHz ~ 1MHz | 100kHz ~ 1MHz | 100kHz ~ 1MHz |
| Power (Watts) | - | - | - | - | - |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width), 12 Leads | 16-TSSOP (0.173", 4.40mm Width), 12 Leads | 16-TSSOP (0.173", 4.40mm Width), 12 Leads | 16-TSSOP (0.173", 4.40mm Width), 12 Leads | 16-TSSOP (0.173", 4.40mm Width), 12 Leads |
| Supplier Device Package | 16-TSSOP | 16-TSSOP | 16-TSSOP | 16-TSSOP | 16-TSSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
