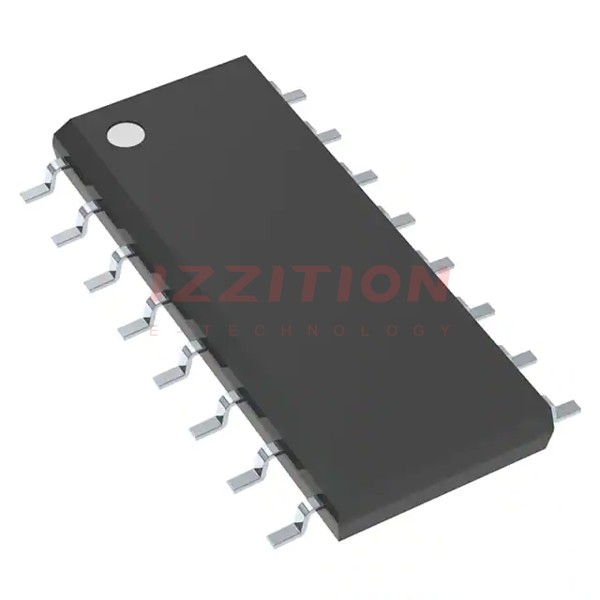

| Part Number | NCP1562BDR2G | NCP1562ADR2G | NCP1562BDBR2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Forward Converter | Forward Converter | Forward Converter |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 23.2V ~ 100V | 23.2V ~ 100V | 23.2V ~ 100V |
| Frequency - Switching | 246kHz ~ 1MHz | 246kHz ~ 1MHz | 246kHz ~ 1MHz |
| Duty Cycle (Max) | 85% | 85% | 85% |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Frequency Control, Ramp, Soft Start | Current Limit, Frequency Control, Ramp, Soft Start | Current Limit, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-TSSOP |
