| Part Number | NCP154MX100180TAG | NCP154MX300180TAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 1V, 1.8V | 1.8V, 3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | -, 0.39V @ 300mA | 0.39V @ 300mA, 0.26V @ 300mA |
| Current - Output | 300mA, 300mA | 300mA, 300mA |
| Current - Quiescent (Iq) | 100 µA | 100 µA |
| Current - Supply (Max) | 200 µA | 200 µA |
| PSRR | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |

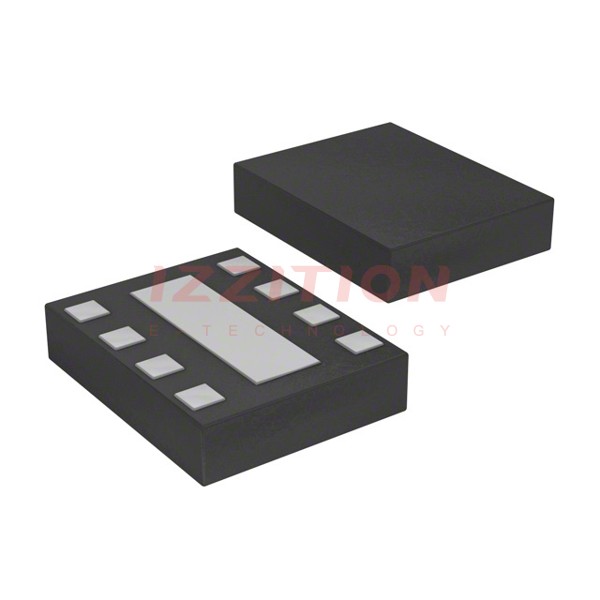

| Package / Case | 8-XFDFN Exposed Pad | 8-XFDFN Exposed Pad |
| Supplier Device Package | 8-XDFN (1.6x1.2) | 8-XDFN (1.6x1.2) |
