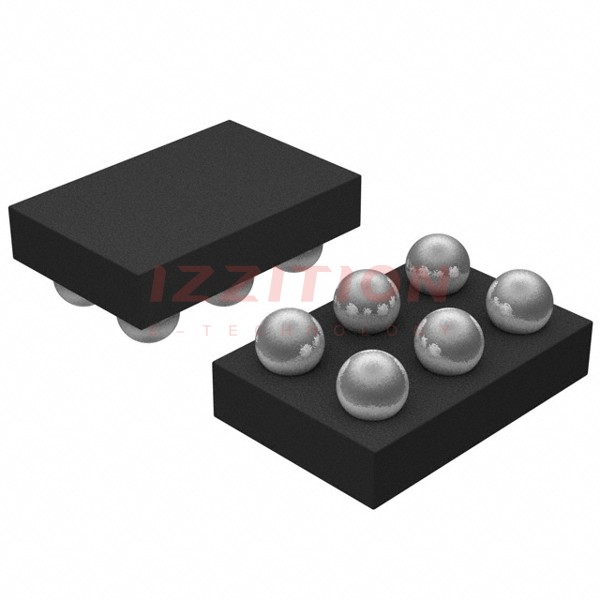

| Part Number | NCP139AFCT105T2G | NCP136AFCT105T2G | NCP137AFCT105T2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.05V | 1.05V | 1.05V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 1.5V @ 1A | 0.06V @ 700mA | 1.5V @ 700mA |
| Current - Output | 1A | 700mA | 700mA |
| Current - Quiescent (Iq) | 50 µA | 110 µA | - |
| Current - Supply (Max) | - | - | - |
| PSRR | 85dB ~ 70dB (1kHz) | 75dB (1kHz) | 85dB ~ 75dB (1kHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Under Voltage Lockout (UVLO) | Over Current, Over Temperature | Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFBGA, WLCSP | 6-XFBGA, WLCSP | 6-XFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.2x0.8) | 6-WLCSP (1.4x0.8) | 6-WLCSP (1.2x0.8) |
