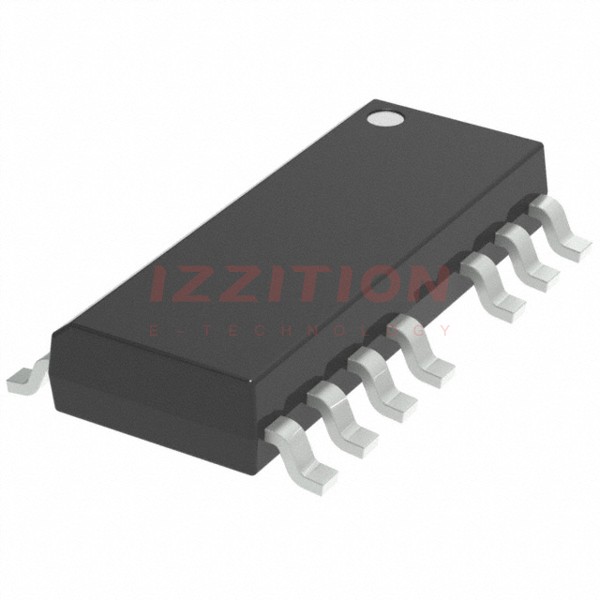

| Part Number | NCP1397ADR2G | NCP1397BDR2G | NCV1397ADR2G | NCP1395ADR2G | NCP1396ADR2G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Last Time Buy | Active |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | No | No | No | No | No |
| Voltage - Breakdown | - | - | - | - | - |
| Topology | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Voltage - Start Up | 10.5 V | 10.5 V | 10.5 V | 13.3 V | 13.4 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V | 9.5V ~ 20V | 9.5V ~ 20V | 9.3V ~ 20V | 9.5V ~ 20V |
| Duty Cycle | 50% | 50% | 50% | 50% | 50% |
| Frequency - Switching | 60kHz ~ 500kHz | 60kHz ~ 500kHz | 60kHz ~ 500kHz | 50kHz ~ 1MHz | 50kHz ~ 500kHz |
| Power (Watts) | - | - | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage | Over Temperature |
| Control Features | Frequency Control | Frequency Control | Frequency Control | Frequency Control, Soft Start | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads | 16-SOIC (0.154", 3.90mm Width), 15 Leads | 16-SOIC (0.154", 3.90mm Width), 15 Leads | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-SOIC | 16-SOIC | 16-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
