| Part Number | NCP1377P | NCP1377PG | NCP1377BP |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Not For New Designs | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | No | No | No |
| Voltage - Breakdown | - | - | - |
| Topology | Flyback | Flyback | Flyback |
| Voltage - Start Up | 12.5 V | 12.5 V | 12.5 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V | 7.5V ~ 18V | 7.5V ~ 18V |
| Duty Cycle | - | - | - |
| Frequency - Switching | Up to 100kHz | Up to 100kHz | Up to 300kHz |
| Power (Watts) | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

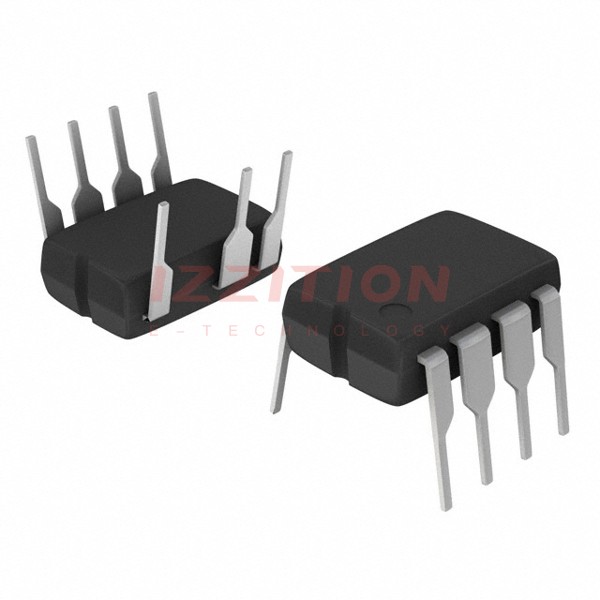

| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP | 7-PDIP | 7-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
