| Part Number | NCP1339GDR2G | NCP1339JDR2G | NCP1339IDR2G | NCP1339HDR2G | NCP1339CDR2G | NCP1339DDR2G | NCP1339EDR2G | NCP1339FDR2G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated | - | Isolated | Isolated |
| Internal Switch(s) | No | No | No | No | No | - | No | No |
| Voltage - Breakdown | - | - | - | - | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback | - | Flyback | Flyback |
| Voltage - Start Up | 15 V | 15 V | 15 V | 15 V | 15 V | - | 15 V | 15 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V | 10V ~ 28V | 10V ~ 28V | 10V ~ 28V | 10V ~ 28V | - | 10V ~ 28V | 10V ~ 28V |
| Duty Cycle | - | - | - | - | - | - | - | - |
| Frequency - Switching | - | - | - | - | - | - | - | - |
| Power (Watts) | - | - | - | - | - | - | - | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | - | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

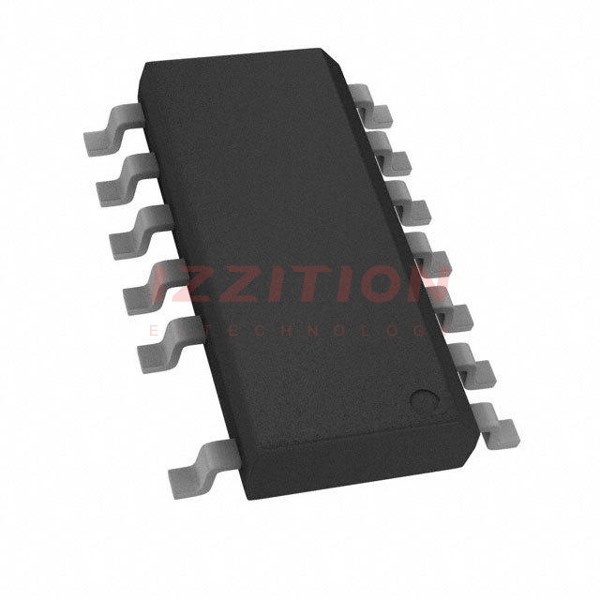

| Package / Case | 14-SOIC (0.154", 3.90mm Width), 13 Leads | 14-SOIC (0.154", 3.90mm Width), 13 Leads | 14-SOIC (0.154", 3.90mm Width), 13 Leads | 14-SOIC (0.154", 3.90mm Width), 13 Leads | 14-SOIC (0.154", 3.90mm Width), 13 Leads | - | 14-SOIC (0.154", 3.90mm Width), 13 Leads | 14-SOIC (0.154", 3.90mm Width), 13 Leads |
| Supplier Device Package | 14-SOIC | 14-SOIC | 14-SOIC | 14-SOIC | 14-SOIC | - | 14-SOIC | 14-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
