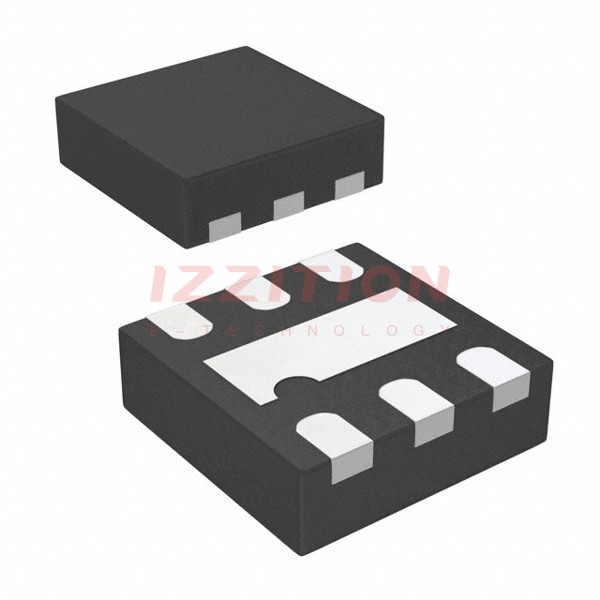

| Part Number | NCP130AMX105TCG | NCP130AMX115TCG | NCP134AMX105TCG | NCP130BMX105TCG | NCP133AMX105TCG | NCP120AMX105TCG | NCP130AMX100TCG |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.05V | 1.15V | 1.05V | 1.05V | 1.05V | 1.05V | 1V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.15V @ 300mA | 0.15V @ 300mA | 0.25V @ 500mA | 0.15V @ 300mA | 0.25V @ 500mA | 0.075V @ 150mA | 0.15V @ 300mA |
| Current - Output | 300mA | 300mA | 500mA | 300mA | 500mA | 150mA | 300mA |
| Current - Quiescent (Iq) | - | - | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - | - | - |
| PSRR | 80dB ~ 65dB (1kHz) | 80dB ~ 65dB (1kHz) | 80dB ~ 70dB (1kHz) | 80dB ~ 65dB (1kHz) | 80dB ~ 70dB (1kHz) | 80dB ~ 70dB (1kHz) | 80dB ~ 65dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 4-XDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) | 4-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) | 6-XDFN (1.2x1.2) |
