Please send RFQ , we will respond immediately.

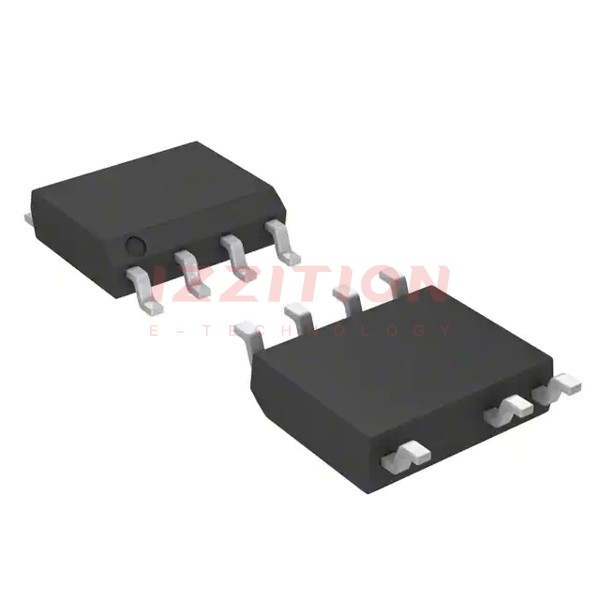

| Part Number | NCP1236BD100R2G | NCP1239BD100R2G | NCP1246BD100R2G | NCP1236ED100R2G | NCP1234BD100R2G | NCP1236AD100R2G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated | - |
| Internal Switch(s) | No | No | No | No | No | - |
| Voltage - Breakdown | - | - | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback | - |
| Voltage - Start Up | 12 V | 12 V | 12 V | 12 V | 12 V | - |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 28V | 8.8V ~ 35V | 8.9V ~ 28V | 9.5V ~ 28V | 9.5V ~ 28V | - |
| Duty Cycle | 80% | 80% | 80% | 80% | 80% | - |
| Frequency - Switching | 100kHz | 100kHz | 100kHz | 100kHz | 100kHz | - |
| Power (Watts) | - | - | - | - | - | - |
| Fault Protection | Over Load, Over Power, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage | Over Load, Over Power, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature | - |
| Control Features | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | - |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | - |
| Supplier Device Package | 7-SOIC | 7-SOIC | 7-SOIC | 7-SOIC | 7-SOIC | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
