Please send RFQ , we will respond immediately.
| Part Number | NCP1216AP100 | NCP1216P100 | NCP1216AP100G | NCP1217AP100 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | No | No | No | No |
| Voltage - Breakdown | - | - | - | - |
| Topology | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | - | - | - | 12.8 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 16V | 10V ~ 16V | 10V ~ 16V | 7.6V ~ 16V |
| Duty Cycle | 46.5% | 75% | 46.5% | 46.5% |
| Frequency - Switching | 100kHz | 100kHz | 100kHz | 100kHz |
| Power (Watts) | - | - | - | - |
| Fault Protection | Over Load, Over Temperature, Short Circuit | Over Load, Over Temperature, Short Circuit | Over Load, Over Temperature, Short Circuit | Over Load, Over Temperature, Short Circuit |
| Control Features | - | - | - | - |
| Operating Temperature | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) |

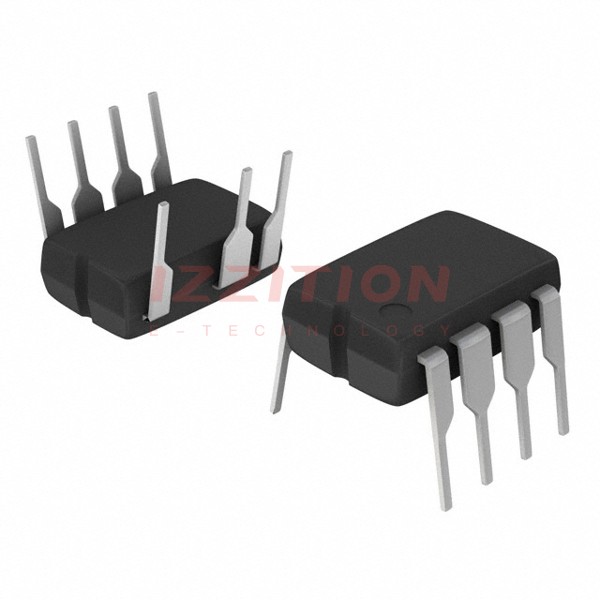

| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
