Please send RFQ , we will respond immediately.

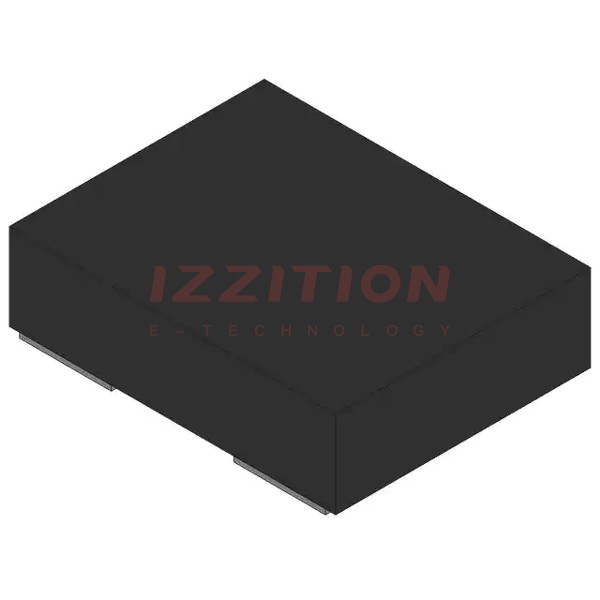

| Part Number | NCP115AMX280TCG | NCP115CMX280TCG | NCP114AMX280TCG | NCP115AMX180TCG | NCP115AMX250TCG | NCP115AMX280TBG |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | - | Positive | Positive | Positive | Positive | Positive |
| Output Type | - | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | - | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | - | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | 2.8V | 2.8V | 1.8V | 2.5V | 2.8V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.34V @ 300mA | 0.23V @ 300mA | 0.58V @ 300mA | - | 0.34V @ 300mA |
| Current - Output | - | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | - | 95 µA | 95 µA | 95 µA | 95 µA | 95 µA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | - | 70dB (1kHz) | 75dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) |
| Control Features | - | Enable | Enable | Enable | Enable | Enable |
| Protection Features | - | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | - | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 4-XDFN Exposed Pad | 4-UDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad | 4-XDFN Exposed Pad |
| Supplier Device Package | - | 4-XDFN (1x1) | 4-UDFN (1.0x1.0) | 4-XDFN (1x1) | 4-XDFN (1x1) | 4-XDFN (1x1) |
