Please send RFQ , we will respond immediately.
| Part Number | NCP1129BP65G | NCP1124BP65G | NCP1126BP65G | NCP1129AP65G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Last Time Buy | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 650V | 650V | 650V | 650V |
| Topology | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 17 V | 17 V | 17 V | 17 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 35V | 8.5V ~ 35V | 8.5V ~ 35V | 8.5V ~ 35V |
| Duty Cycle | 80% | 80% | 80% | 80% |
| Frequency - Switching | 65kHz | 65kHz | 65kHz | 65kHz |
| Power (Watts) | 43 W | 27 W | 32 W | 43 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |

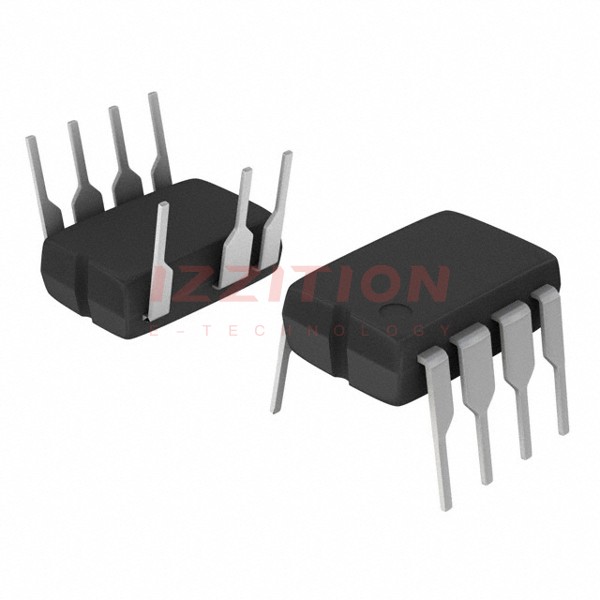

| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
