Please send RFQ , we will respond immediately.

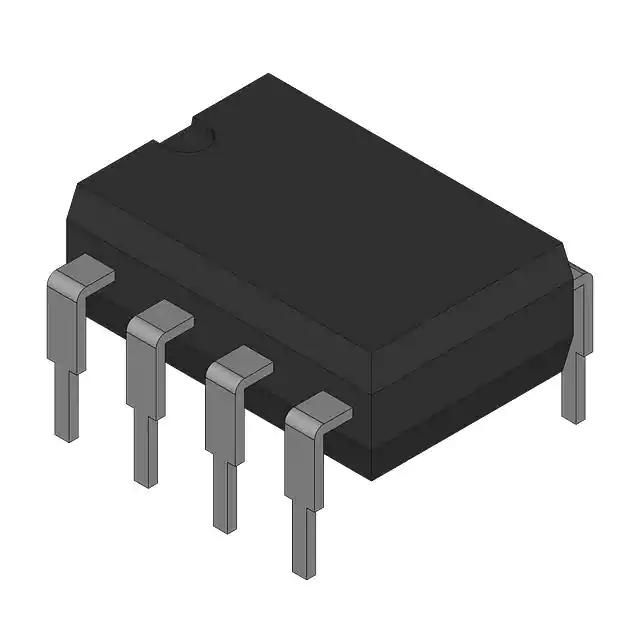

| Part Number | NCP1075BAP130G | NCP1076BAP130G | NCP1075BBP130G | NCP1077BAP130G | NCP1079BAP130G | NCP1075BAP100G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Isolation | - | - | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | - | - | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | - | - | 700V | 700V | 700V | 700V |
| Topology | - | - | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | - | - | 8.4 V | 8.4 V | 8.4 V | 8.4 V |
| Voltage - Supply (Vcc/Vdd) | - | - | 6.5V ~ 20V | 6.5V ~ 20V | 6.5V ~ 20V | 6.5V ~ 20V |
| Duty Cycle | - | - | 68% | 68% | 68% | 68% |
| Frequency - Switching | - | - | 130kHz | 130kHz | 130kHz | 100kHz |
| Power (Watts) | - | - | 14 W | 31 W | 41 W | 14 W |
| Fault Protection | - | - | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - | - | - | - | - | - |
| Operating Temperature | - | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Package / Case | - | - | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | - | - | 8-PDIP | 8-PDIP | 8-PDIP | 8-PDIP |
| Mounting Type | - | - | Through Hole | Through Hole | Through Hole | Through Hole |
