Please send RFQ , we will respond immediately.

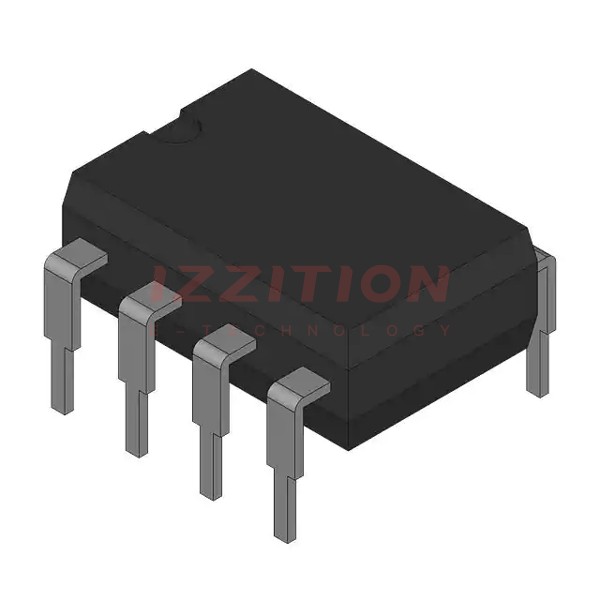

| Part Number | NCP1071P100G | NCP1077P100G | NCP1075P100G | NCP1076P100G | NCP1072P100G | NCP1071P130G | NCP1051P100G | NCP1070P100G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Active | Obsolete | Active | Obsolete | Active |
| Output Isolation | - | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | - |
| Internal Switch(s) | - | Yes | Yes | Yes | Yes | Yes | Yes | - |
| Voltage - Breakdown | - | 700V | 700V | 700V | 700V | 700V | 700V | - |
| Topology | - | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback | - |
| Voltage - Start Up | - | 8.1 V | 8.2 V | 8.1 V | 8.2 V | 8.2 V | 8.5 V | - |
| Voltage - Supply (Vcc/Vdd) | - | 6.3V ~ 10V | 6.3V ~ 10V | 6.3V ~ 10V | 6.3V ~ 10V | 6.3V ~ 10V | 7.5V ~ 10V | - |
| Duty Cycle | - | 69% | 68% | 69% | 68% | 68% | 77% | - |
| Frequency - Switching | - | 100kHz | 100kHz | 100kHz | 100kHz | 130kHz | 100kHz | - |
| Power (Watts) | - | 25 W | 19 W | 25 W | 19 W | 14 W | 40 W | - |
| Fault Protection | - | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Open Loop, Over Load, Over Temperature | - |
| Control Features | - | - | - | - | - | - | - | - |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | - |
| Package / Case | - | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | - |
| Supplier Device Package | - | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP | - |
| Mounting Type | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | - |
