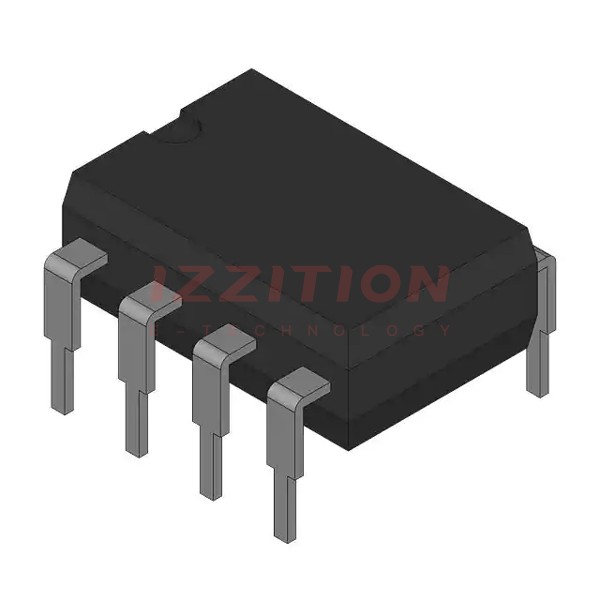

| Part Number | NCP1070P100G | NCP1071P100G | NCP1077P100G | NCP1075P100G | NCP1076P100G | NCP1072P100G | NCP1070P130G | NCP1050P100G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Output Isolation | - | - | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | - | - | Yes | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | - | - | 700V | 700V | 700V | 700V | 700V | 700V |
| Topology | - | - | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | - | - | 8.1 V | 8.2 V | 8.1 V | 8.2 V | 8.2 V | 8.5 V |
| Voltage - Supply (Vcc/Vdd) | - | - | 6.3V ~ 10V | 6.3V ~ 10V | 6.3V ~ 10V | 6.3V ~ 10V | 6.3V ~ 10V | 7.5V ~ 10V |
| Duty Cycle | - | - | 69% | 68% | 69% | 68% | 68% | 77% |
| Frequency - Switching | - | - | 100kHz | 100kHz | 100kHz | 100kHz | 130kHz | 100kHz |
| Power (Watts) | - | - | 25 W | 19 W | 25 W | 19 W | 14 W | 40 W |
| Fault Protection | - | - | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Over Load, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Open Loop, Over Load, Over Temperature |
| Control Features | - | - | - | - | - | - | - | - |
| Operating Temperature | - | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Package / Case | - | - | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | - | - | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP | 7-PDIP |
| Mounting Type | - | - | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
