Please send RFQ , we will respond immediately.

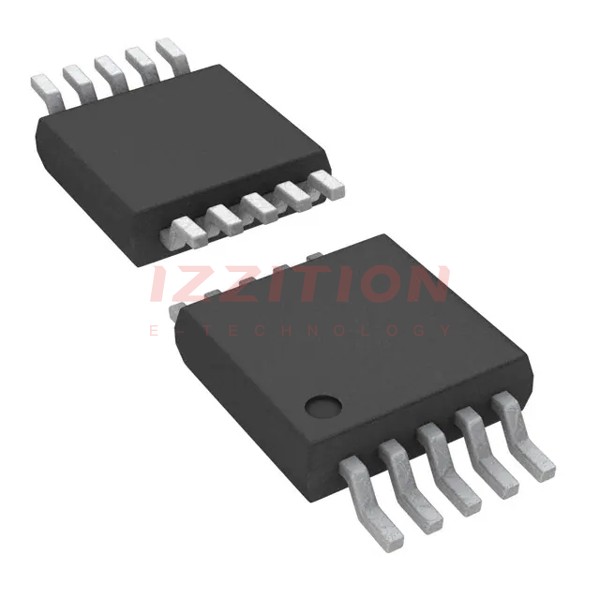

| Part Number | NCP1060AD100R2G | NCP1060BD100R2G | NCP1063AD100R2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Output Isolation | Either | Either | Either |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 700V | 700V | 700V |
| Topology | Buck, Flyback | Buck, Flyback | Buck, Flyback |
| Voltage - Start Up | 9 V | 9 V | 9 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 20V | 7V ~ 20V | 7V ~ 20V |
| Duty Cycle | 66% | 66% | 66% |
| Frequency - Switching | 100kHz | 100kHz | 100kHz |
| Power (Watts) | 8.3 W | 8.3 W | 15.5 W |
| Fault Protection | Over Load, Over Power, Over Temperature, Short Circuit | Over Load, Over Power, Over Temperature, Short Circuit | Over Load, Over Power, Over Temperature, Short Circuit |
| Control Features | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SOIC | 10-SOIC | 16-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
