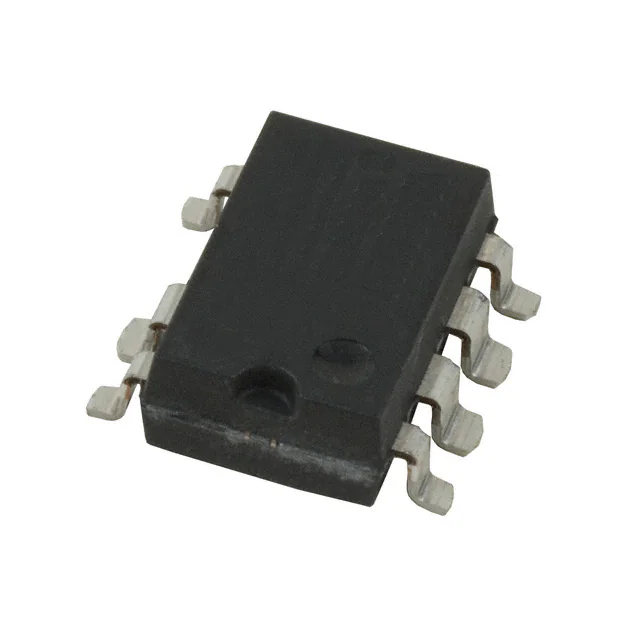

| Part Number | NCP1012APL130R2G | NCP1011APL130R2G | NCP1012APL100R2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Sanyo |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 700V | 700V | 700V |
| Topology | Flyback | Flyback | Flyback |
| Voltage - Start Up | - | - | - |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 10V | 8.5V ~ 10V | 8.5V ~ 10V |
| Duty Cycle | 67% | 67% | 67% |
| Frequency - Switching | 130kHz | 130kHz | 100kHz |
| Power (Watts) | 19 W | 19 W | 19 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage | Over Load, Over Temperature, Over Voltage | Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing | 8-SMD (7 Leads), Gull Wing | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | 7-PDIP, Gullwing | 7-PDIP, Gullwing | 7-PDIP, Gullwing |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
