Please send RFQ , we will respond immediately.

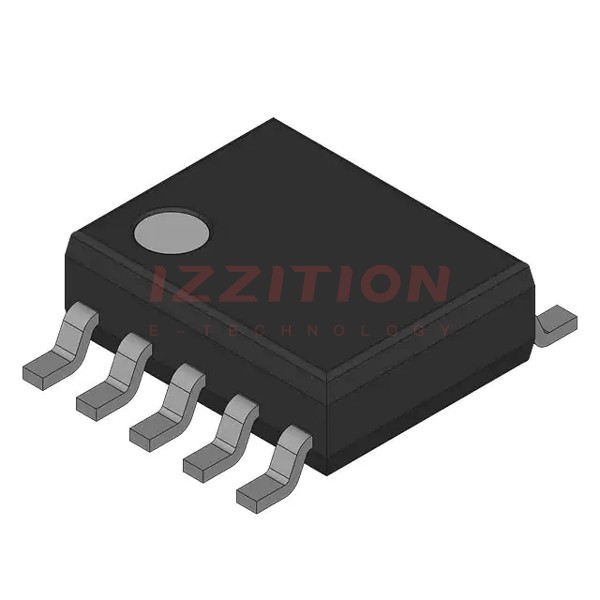

| Part Number | NCL30386A1DR2G | NCL30486A1DR2G | NCL30388A1DR2G | NCL30386B1DR2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Type | - | AC DC Offline Switcher | DC DC Controller | DC DC Controller |
| Topology | - | Flyback | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | - | Yes | No | No |
| Number of Outputs | - | 1 | 1 | 1 |
| Voltage - Supply (Min) | - | 10.2V | 8.2V | 8.2V |
| Voltage - Supply (Max) | - | 26.5V | 30V | 30V |
| Voltage - Output | - | - | 14V | 14V |
| Current - Output / Channel | - | - | 4.7mA | 4.7mA |
| Frequency | - | - | 150kHz | 150kHz |
| Dimming | - | Analog, PWM | Yes | Analog, PWM |
| Applications | - | Lighting | LED Lighting | LED Lighting |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 10-SOP (0.154", 3.90mm Width), 9 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 10-SOP (0.154", 3.90mm Width), 9 Leads |
| Supplier Device Package | - | 9-SOIC | 7-SOIC | 9-SOIC |
