Please send RFQ , we will respond immediately.

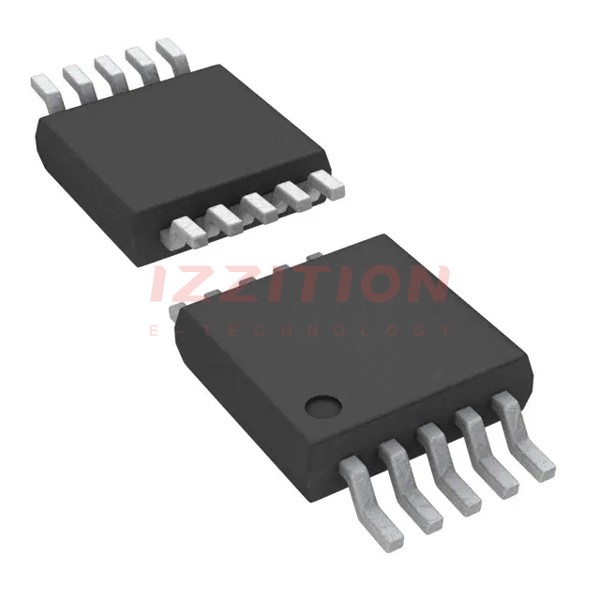

| Part Number | NCL30186BDR2G | NCL30188BDR2G | NCL30186DDR2G | NCL30086BDR2G | NCL30185BDR2G | NCL30186ADR2G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | AC DC Offline Switcher | - | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | - |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | - | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | - |
| Internal Switch(s) | No | - | No | No | No | - |
| Number of Outputs | 1 | - | 1 | 1 | 1 | - |
| Voltage - Supply (Min) | 8.8V | - | 8.8V | 8.8V | 8.8V | - |
| Voltage - Supply (Max) | 25.5V | - | 25.5V | 20V | 25.5V | - |
| Voltage - Output | - | - | - | - | - | - |
| Current - Output / Channel | - | - | - | - | - | - |
| Frequency | - | - | - | - | - | - |
| Dimming | Analog, PWM | - | Analog, PWM | Analog, PWM | Multi-Step | - |
| Applications | Lighting | - | Lighting | Lighting | Lighting | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) | - |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | - | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | - |
| Supplier Device Package | 10-SOIC | - | 10-SOIC | 10-SOIC | 8-SOIC | - |
