Please send RFQ , we will respond immediately.

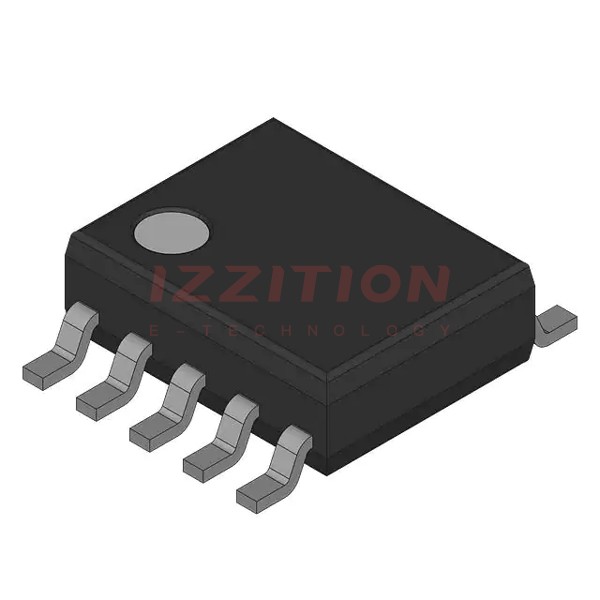

| Part Number | NCL30186ADR2G | NCL30188ADR2G | NCL30186BDR2G | NCL30186DDR2G | NCL30185ADR2G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | - | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher |
| Topology | - | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | - | No | No | No | No |
| Number of Outputs | - | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | - | 8.8V | 8.8V | 8.8V | 8.8V |
| Voltage - Supply (Max) | - | 25.5V | 25.5V | 25.5V | 25.5V |
| Voltage - Output | - | - | - | - | - |
| Current - Output / Channel | - | - | - | - | - |
| Frequency | - | - | - | - | - |
| Dimming | - | - | Analog, PWM | Analog, PWM | Multi-Step |
| Applications | - | Lighting | Lighting | Lighting | Lighting |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 8-SOIC (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | - | 8-SOIC | 10-SOIC | 10-SOIC | 8-SOIC |
