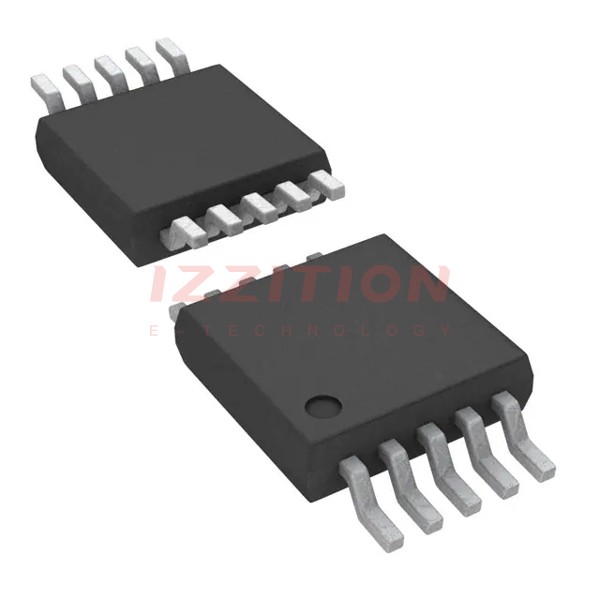

| Part Number | NCL30086BDR2G | NCL30088BDR2G | NCL30186BDR2G | NCL30086BHDR2G | NCL30082BDR2G | NCL30083BDR2G | NCL30085BDR2G |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Type | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback | Flyback | Flyback |
| Internal Switch(s) | No | No | No | No | No | No | No |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 8.8V | 8.8V | 8.8V | 8.8V | 8.8V | 8.8V | 8.8V |
| Voltage - Supply (Max) | 20V | 20V | 25.5V | 20V | 20V | 28V | 20V |
| Voltage - Output | - | - | - | - | - | - | - |
| Current - Output / Channel | - | - | - | - | - | - | - |
| Frequency | - | - | - | - | - | - | - |
| Dimming | Analog, PWM | - | Analog, PWM | Analog, PWM | Analog, PWM | Multi-Step | Multi-Step |
| Applications | Lighting | Lighting | Lighting | Lighting | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SOIC | 8-SOIC | 10-SOIC | 10-SOIC | 8-SOIC | 8-MSOP | 8-SOIC |
