Please send RFQ , we will respond immediately.
| Part Number | NCL30030B3DR2G | NCL30060B3DR2G | NCL30030B1DR2G | NCL30030B2DR2G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Active |
| Type | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher | AC DC Offline Switcher |
| Topology | Flyback | Flyback, Step-Down (Buck) | Flyback | Flyback |
| Internal Switch(s) | No | No | No | No |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 9V | - | 9V | 9V |
| Voltage - Supply (Max) | 30V | 30V | 30V | 30V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | - | 3A | - | - |
| Frequency | - | - | - | - |
| Dimming | - | No | - | - |
| Applications | Lighting, Signage | LED Lighting | Lighting, Signage | Lighting, Signage |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

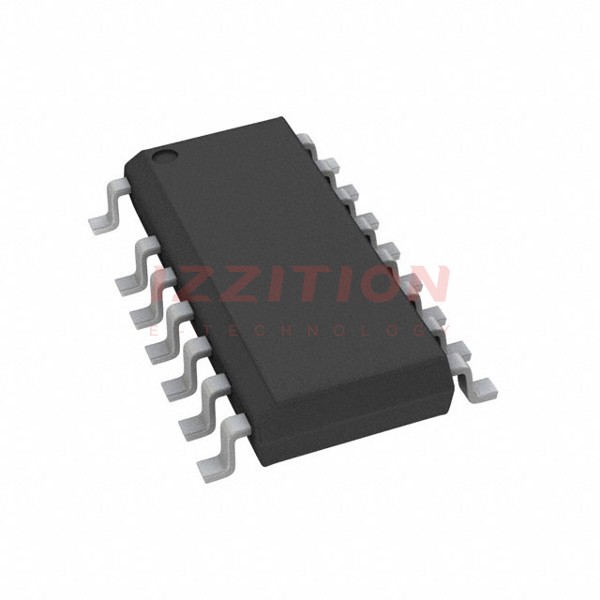

| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads | 8-SOIC (0.154", 3.90mm Width), 7 Leads | 16-SOIC (0.154", 3.90mm Width), 15 Leads | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Supplier Device Package | 16-SOIC | 7-SOIC | 16-SOIC | 16-SOIC |
