onsemi-NCID9401 - Digital Isolators Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Type:	I²C, SPI
Isolated Power:	No
Number of Channels:	4
Inputs - Side 1/Side 2:	4/0
Channel Type:	Unidirectional
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	200ns, 200ns
Pulse Width Distortion (Max):	80ns
Rise / Fall Time (Typ):	3ns, 2ns
Voltage - Supply:	2.5V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC

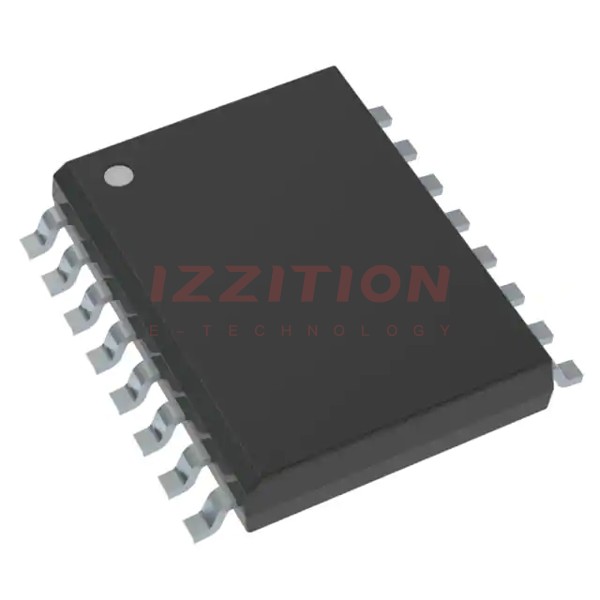

onsemi NCID9401
