onsemi-NCID9210 - Digital Isolators Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Type:	I²C, SPI
Isolated Power:	No
Number of Channels:	2
Inputs - Side 1/Side 2:	1/1
Channel Type:	Unidirectional
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Data Rate:	50Mbps
Propagation Delay tpLH / tpHL (Max):	25ns, 25ns
Pulse Width Distortion (Max):	10ns
Rise / Fall Time (Typ):	2.2ns, 3ns
Voltage - Supply:	2.5V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC

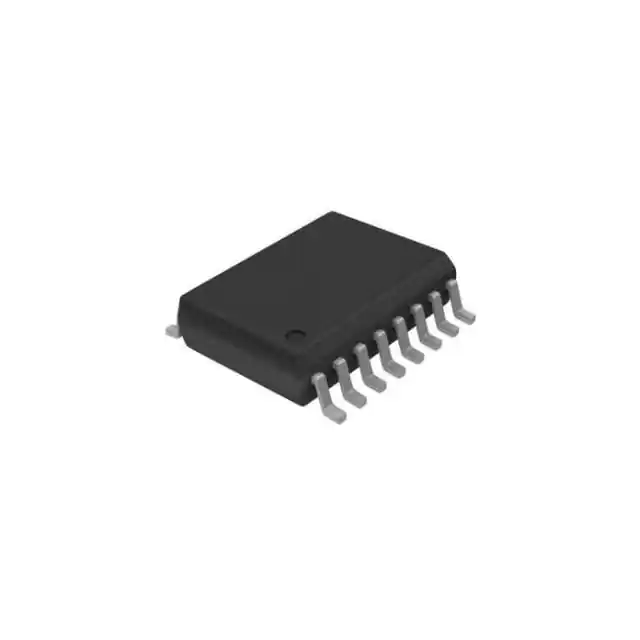

onsemi NCID9210
