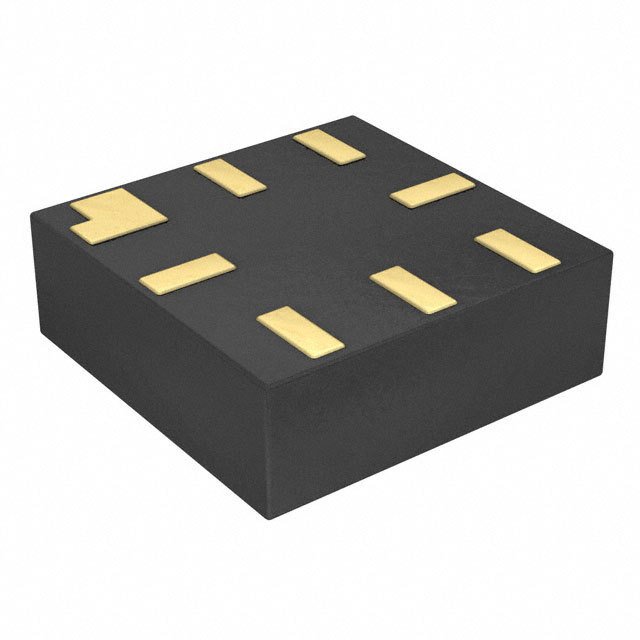

| Part Number | NC7WZ86L8X | NC7WZ86K8X |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| Logic Type | XOR (Exclusive OR) | XOR (Exclusive OR) |
| Number of Circuits | 2 | 2 |
| Number of Inputs | 2 | 2 |
| Features | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - |
| Logic Level - High | - | - |
| Max Propagation Delay @ V, Max CL | 4.2ns @ 5V, 50pF | 4.2ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MicroPak™ | US8 |
| Package / Case | 8-UFQFN | 8-VFSOP (0.091", 2.30mm Width) |
