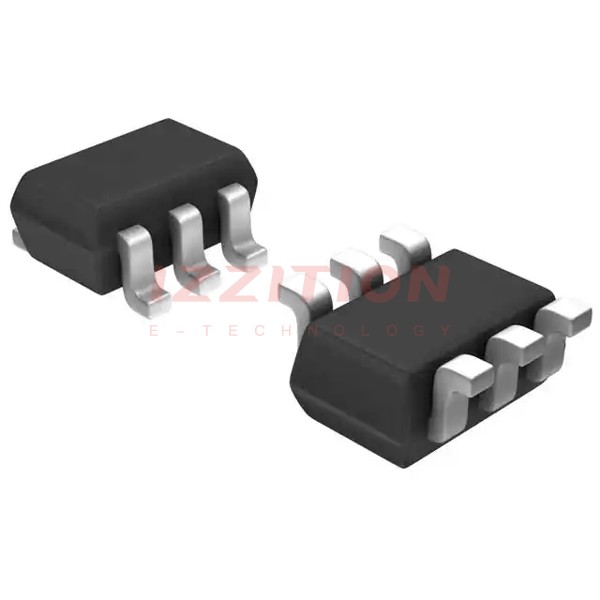

| Part Number | NC7WZ14P6X | NC7WP14P6X | NC7WV14P6X | NC7WZ04P6X | NC7WZ14EP6X | NC7WZ14L6X | NC7WZ14P6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Features | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | - | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger Input |
| Voltage - Supply | 1.65V ~ 5.5V | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.8V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 900 nA | 900 nA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 2.6mA, 2.6mA | 24mA, 24mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.2V ~ 1.2V | 0.1V ~ 0.6V | 0.1V ~ 0.6V | - | 0.2V ~ 1.2V | 0.2V ~ 1.2V | 0.9V ~ 2.3V |
| Logic Level - High | 1.4V ~ 3.6V | 0.65V ~ 2.6V | 0.7V ~ 2.2V | - | 1.4V ~ 3.6V | 1.4V ~ 3.6V | 1.5V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF | 9.2ns @ 3.3V, 30pF | 3.3ns @ 3V, 30pF | 3.6ns @ 5V, 50pF | 4.9ns @ 5V, 50pF | 4.9ns @ 5V, 50pF | 4.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-88 (SC-70-6) | 6-MicroPak | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-UFDFN | 6-TSSOP, SC-88, SOT-363 |
