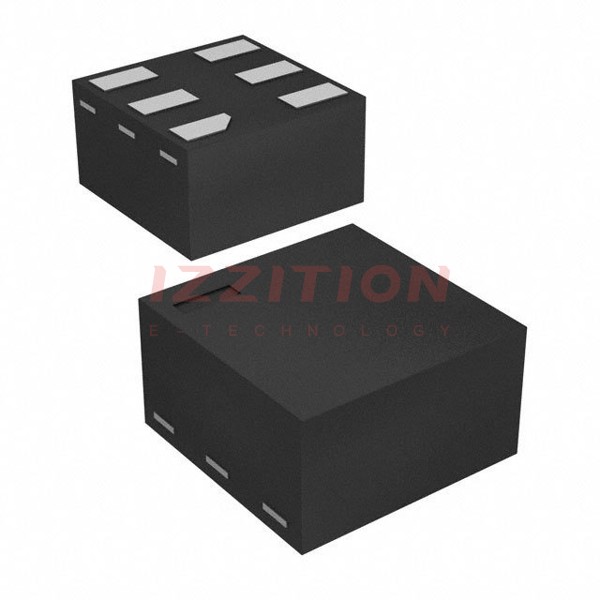

| Part Number | NC7WZ14FHX | NC7SZ14FHX | NC7WZ04FHX |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter |
| Number of Circuits | 2 | 1 | 2 |
| Number of Inputs | 2 | 1 | 2 |
| Features | Schmitt Trigger | Schmitt Trigger | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.2V ~ 1.2V | 0.2V ~ 1.2V | - |
| Logic Level - High | 1.4V ~ 3.6V | 1.4V ~ 3.6V | - |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF | 5.9ns @ 5V, 50pF | 3.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN |
