Please send RFQ , we will respond immediately.

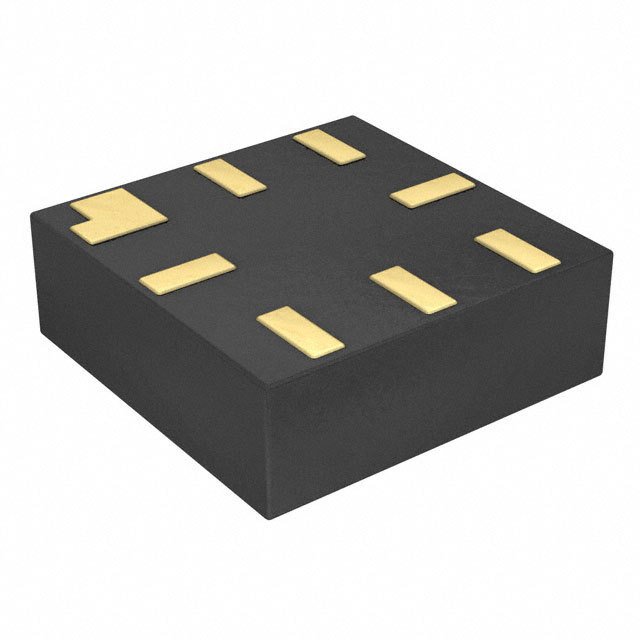

| Part Number | NC7WZ08L8X | NC7WZ38L8X | NC7WP08L8X | NC7WZ00L8X | NC7WZ02L8X | NC7WZ08K8X |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Logic Type | AND Gate | NAND Gate | AND Gate | NAND Gate | NOR Gate | AND Gate |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 |
| Features | - | Open Drain | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 900 nA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | -, 32mA | 2.6mA, 2.6mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | 0.7V ~ 0.9V | - | - | - |
| Logic Level - High | - | - | 1.6V ~ 2.1V | - | - | - |
| Max Propagation Delay @ V, Max CL | 3.7ns @ 5V, 50pF | 3.4ns @ 5V, 50pF | 9.2ns @ 3.3V, 30pF | 3.6ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 3.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MicroPak™ | 8-MicroPak™ | 8-MicroPak™ | 8-MicroPak™ | 8-MicroPak™ | US8 |
| Package / Case | 8-UFQFN | 8-UFQFN | 8-UFQFN | 8-UFQFN | 8-UFQFN | 8-VFSOP (0.091", 2.30mm Width) |
