| Part Number | NC7WB66L8X | NC7WB66K8X |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Last Time Buy | Active |
| Switch Circuit | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 10Ohm | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm | 200mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 3.2ns, 4.1ns | 3.2ns, 4.1ns |
| -3db Bandwidth | 300MHz | 300MHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 5pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA |
| Crosstalk | -70dB @ 10MHz | -70dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

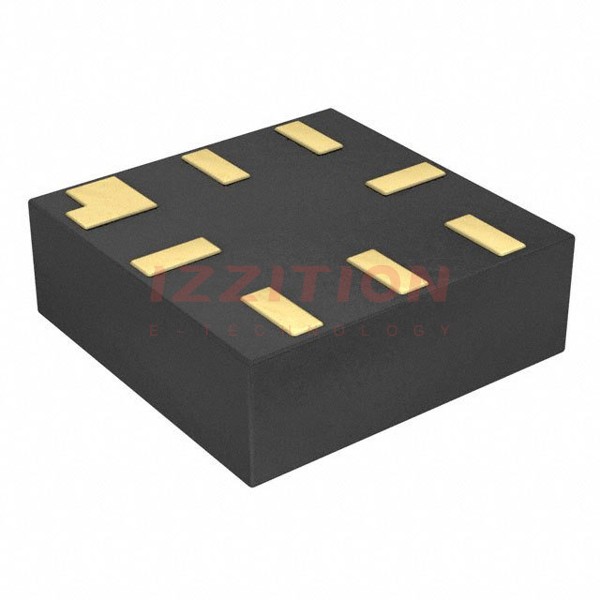

| Package / Case | 8-UFQFN | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-MicroPak™ | US8 |
