Please send RFQ , we will respond immediately.

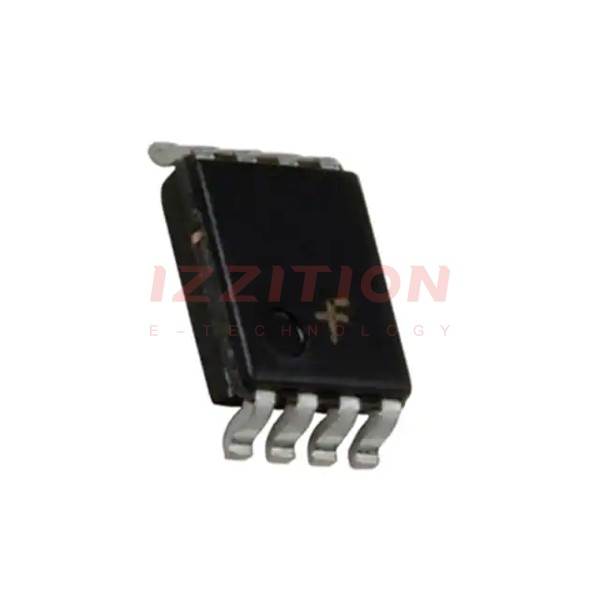

| Part Number | NC7SZ74K8X | NC7SZ74L8X | NC7SP74K8X | NC7SV74K8X |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active | Active |
| Function | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset |
| Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Complementary | Complementary | Complementary | Complementary |
| Number of Elements | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 1 | 1 | 1 | 1 |
| Clock Frequency | 200 MHz | 200 MHz | 150 MHz | 200 MHz |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF | 5ns @ 5V, 50pF | 8ns @ 3.3V, 30pF | 2.8ns @ 3.3V, 30pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 2.6mA, 2.6mA | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 0.9V ~ 3.6V | 0.9V ~ 3.6V |
| Current - Quiescent (Iq) | 1 µA | 1 µA | 900 nA | 900 µA |
| Input Capacitance | 3 pF | 3 pF | 2 pF | 2 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | US8 | 8-MicroPak™ | US8 | US8 |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | 8-UFQFN | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) |
