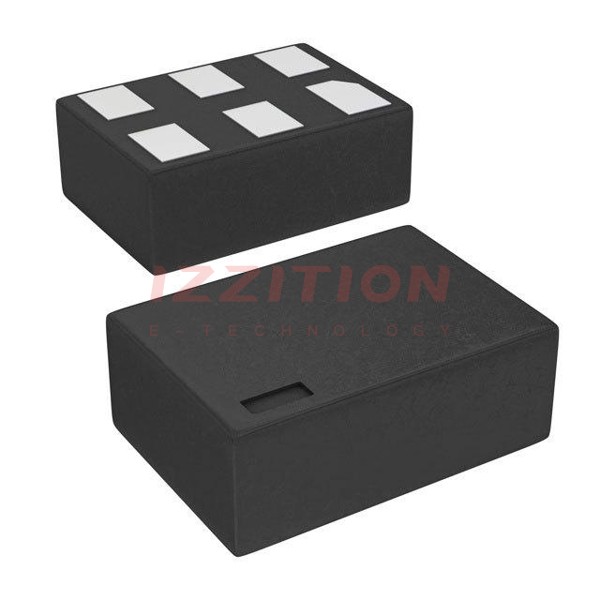

onsemi-NC7SZ374L6X_F113 - Logic - Flip Flops Product Specifications and Latest Quotes

Function:	Standard
Type:	D-Type
Output Type:	Tri-State, Non-Inverted
Number of Elements:	1
Number of Bits per Element:	1
Clock Frequency:	175 MHz
Max Propagation Delay @ V, Max CL:	4ns @ 5V, 50pF
Trigger Type:	Positive Edge
Current - Output High, Low:	32mA, 32mA
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Iq):	1 µA
Input Capacitance:	3 pF
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	6-MicroPak
Package / Case:	6-UFDFN

onsemi NC7SZ374L6X_F113
