| Part Number | NC7SZ04FHX | NC7SZ14FHX | NC7SZ08FHX | NC7WZ04FHX | NC7SZU04FHX | NC7SZ05FHX | NC7SV04FHX | NC7SZ00FHX | NC7SZ02FHX |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | AND Gate | Inverter | Inverter | Inverter | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 2 |
| Features | - | Schmitt Trigger | - | - | - | Open Drain | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 0.9V ~ 3.6V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 1 µA | 2 µA | 1 µA | 2 µA | 2 µA | 900 nA | 2 µA | 2 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 16mA, 16mA | -, 32mA | 24mA, 24mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | 0.2V ~ 1.2V | - | - | - | - | 0.7V ~ 0.8V | - | - |
| Logic Level - High | - | 1.4V ~ 3.6V | - | - | - | - | 1.6V ~ 2V | - | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF | 5.9ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 3.6ns @ 5V, 50pF | 5ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 2.3ns @ 3V, 30pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

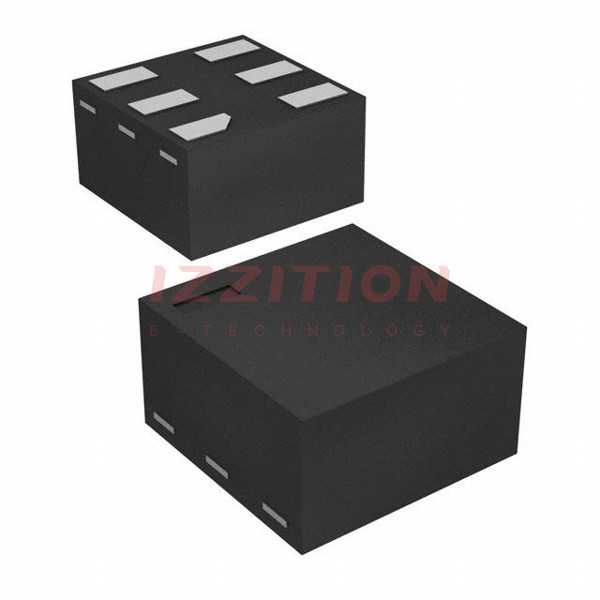

| Supplier Device Package | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
