Please send RFQ , we will respond immediately.

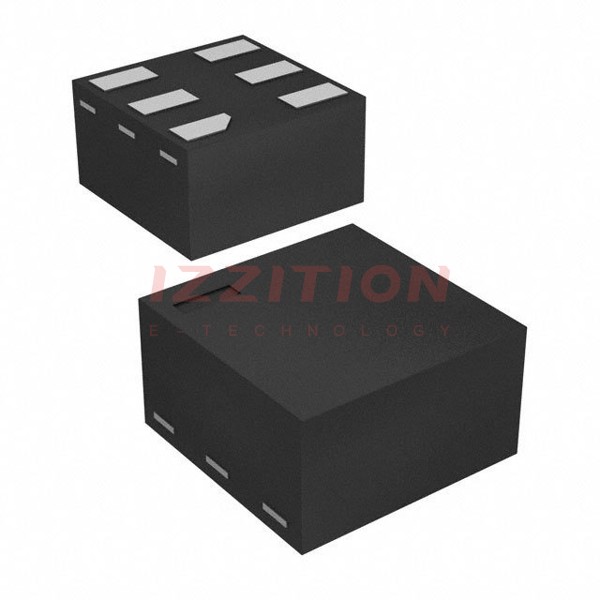

| Part Number | NC7SVL08FHX | NC7SV08FHX | NC7SVL04FHX |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Obsolete |
| Logic Type | AND Gate | AND Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 1 |
| Features | - | - | - |
| Voltage - Supply | 0.9V ~ 3.6V | 0.9V ~ 3.6V | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA | 900 nA | 900 nA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 0.9V ~ 1.5V | 1.6V ~ 2V | 0.9V ~ 1.5V |
| Max Propagation Delay @ V, Max CL | 3.5ns @ 3V, 30pF | 2.3ns @ 3V, 30pF | 3.5ns @ 3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MicroPak2™ | 6-MicroPak2™ | 6-MicroPak2™ |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN |
